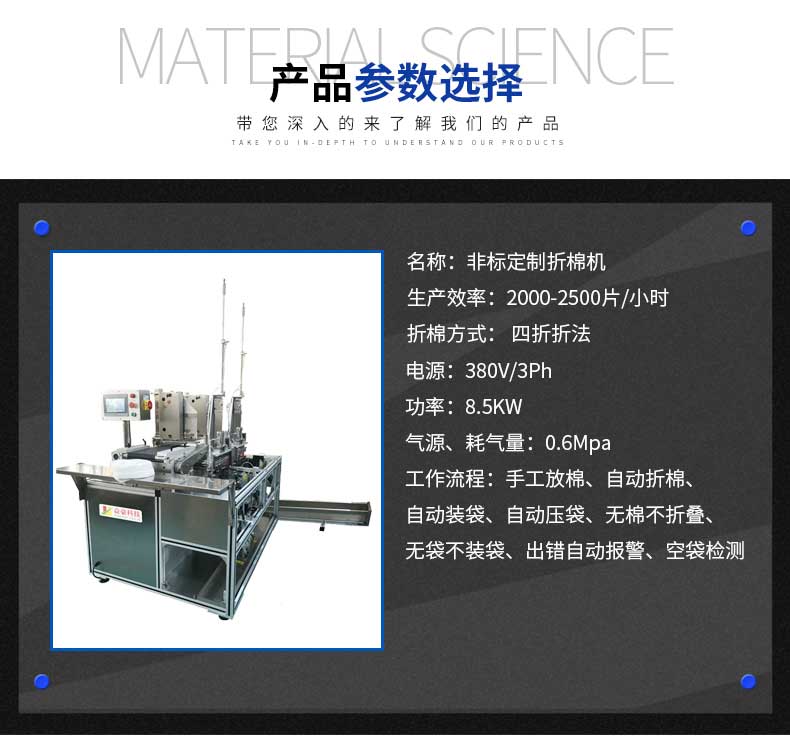

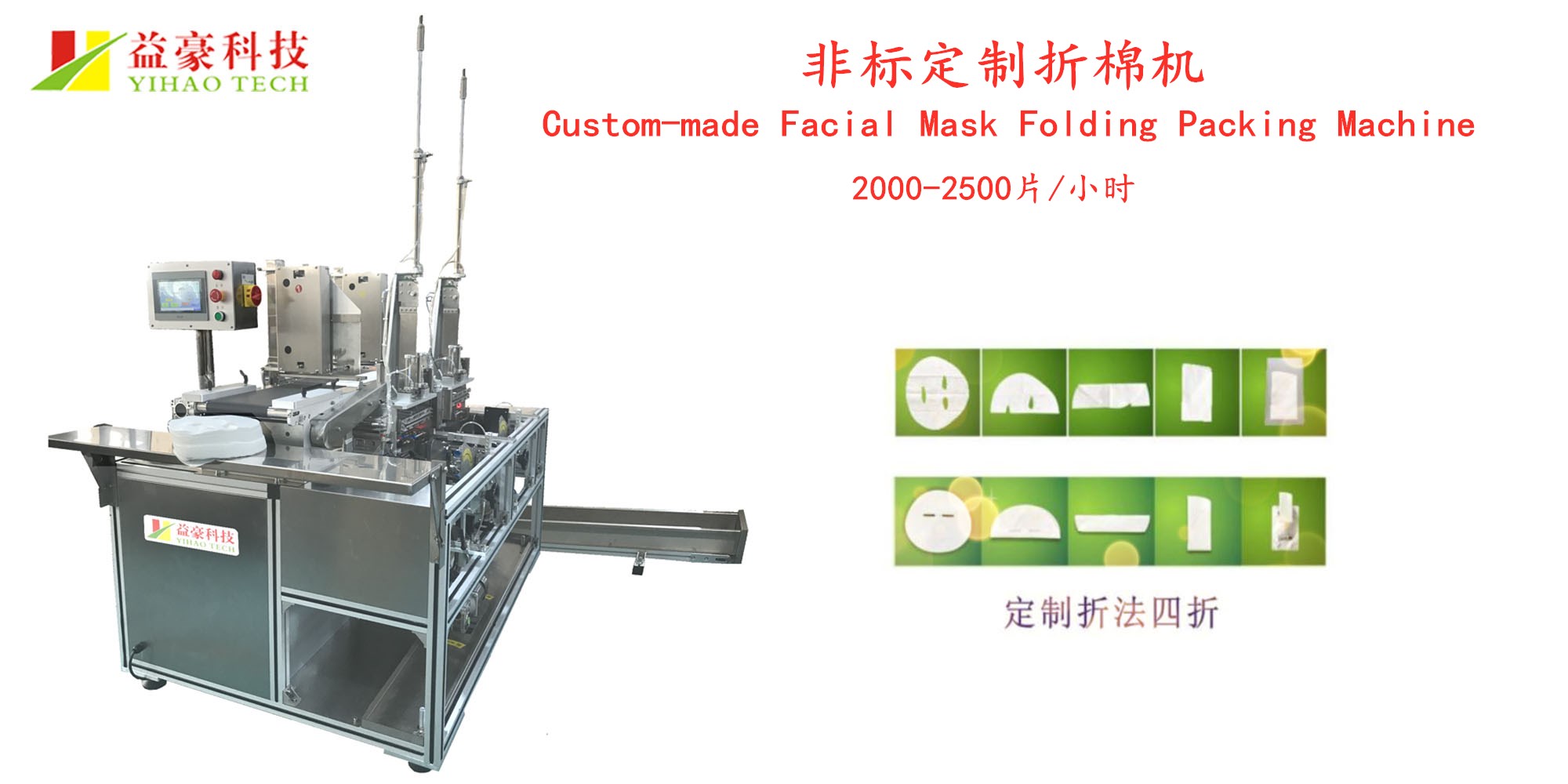

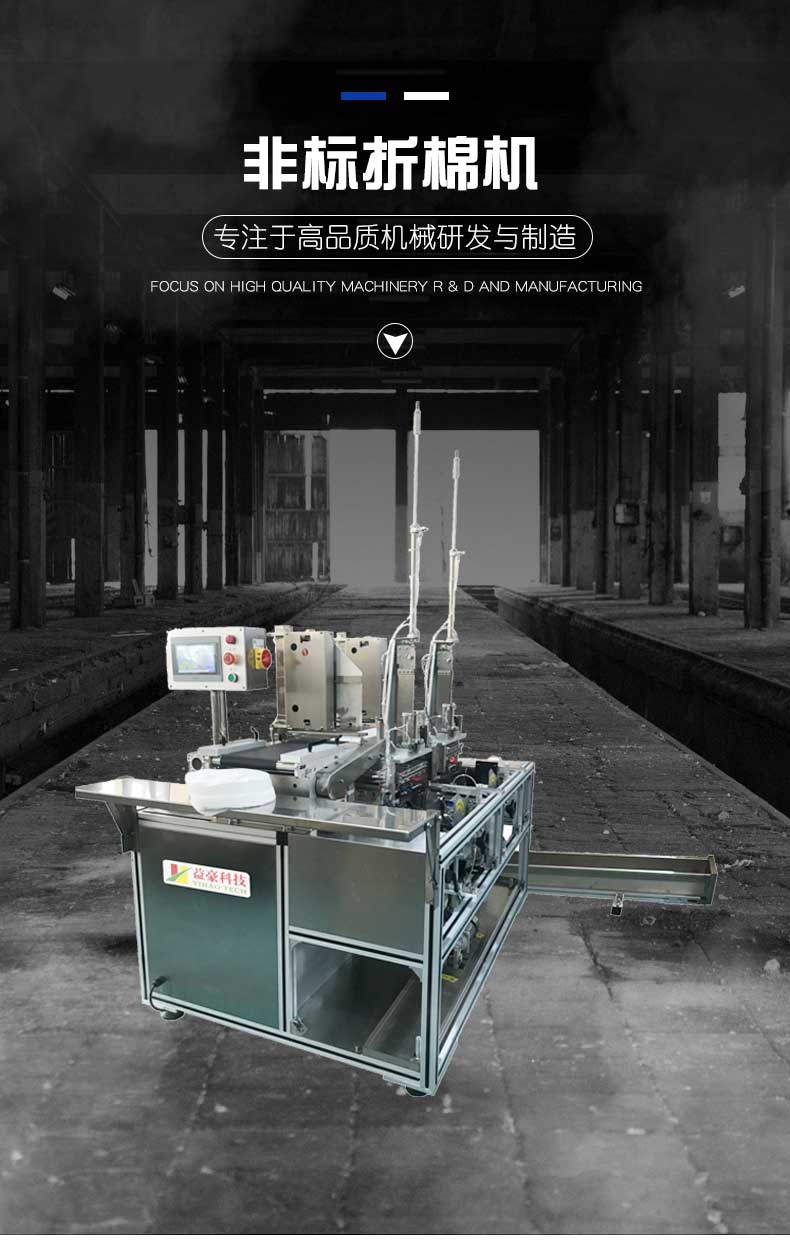

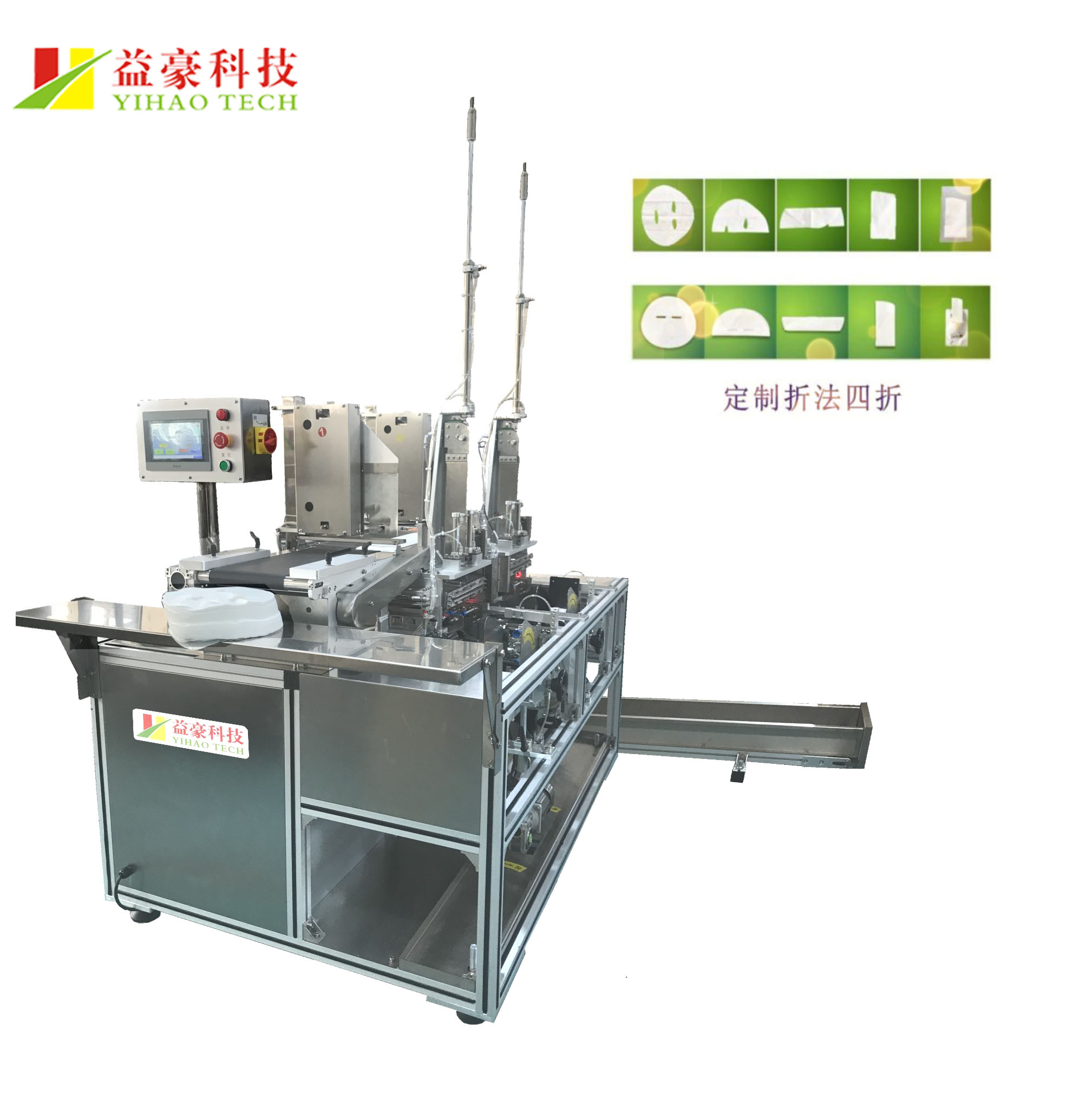

非標定制折棉機

1、工作流程:手工放棉、自動折棉、自動裝袋,自動壓袋、無棉不折疊,無袋不裝袋,出錯自動報警,空袋檢測;

2、折棉方式: 四折折法 ;

3、機器前端設置有放棉平臺,放棉輕松、快捷,放棉速度可輕易達到2000-2500片/小時以上;

4、雙頭獨立控制,可隨意控制其中一組的關閉 ;

5、帶有不良品報警,剔除功能,帶有空袋檢測功能,可確保成品中沒有空袋;

6、選配收集皮帶,可設定袋數,方便收集;

7、PLC+液晶觸摸屏控制操作,可以觸摸屏上輕松設定參數,產量和出錯信息清晰直觀;


定制咨詢 0755-23228334 18620311051

產品詳情 技術特性 技術參數 產品細節 產品視頻

產品詳情 / Product details

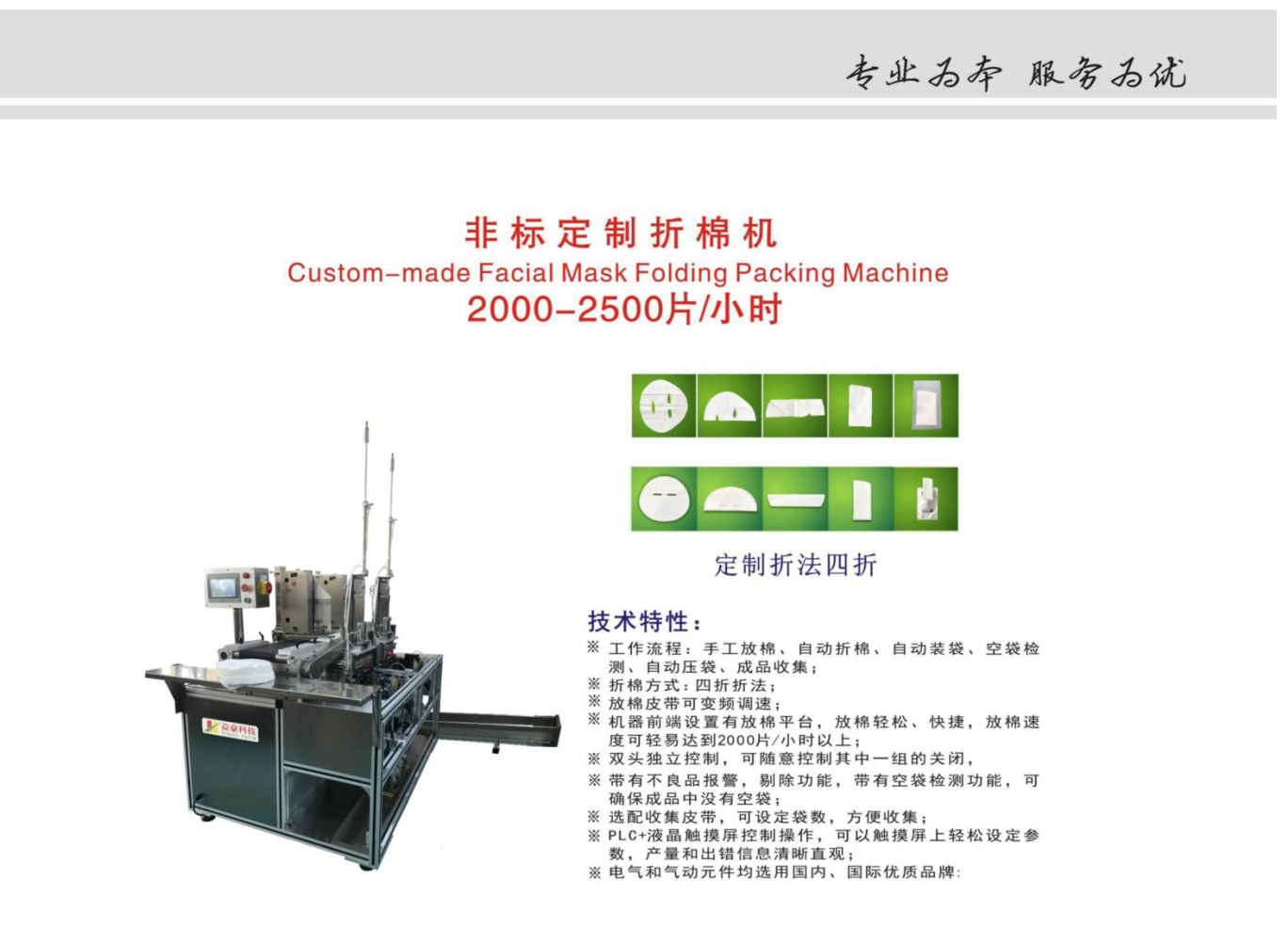

技術特性 / Technical characteristics


1、工作流程:手工放棉、自動折棉、自動轉向、自動裝袋、空袋檢測、自動壓袋、成品收集;



2、折棉方式:根據客戶要求定制;



3、放棉皮帶可變頻調速;



4、機器前端設置有放棉平臺,放棉輕松、快捷,放棉速度可輕易達到2000片/小時以上;



5、雙頭獨立控制,可隨意控制其中一組的關閉,


6、帶有不良品報警,剔除功能,帶有空袋檢測功能,可確保成品中沒有空袋;


7、選配收集皮帶,可設定袋數,方便收集;



8、PLC+液晶觸摸屏控制操作,可以觸摸屏上輕松設定參數,產量和出錯信息清晰直觀;



  1. Working procedure: Put the try mask sheet and bags by hands-auto mask sheet folding-auto rotating-auto bagging –Auto empty       bag checking—Auto bag pressing--auto bagging output;


2. Folding method: customized according to customer requirements;


3. Inverter controlled facial mask sheet feeding belt, speed adjustable;


4. With facial mask sheet table for convenient and fast feeding the sheets, speed up to more than 2000pcs/hour;


5. Separate control for two folding units, could turn off either of the folding unit, One button switch between ;


6. With defective products alarm and reject function, with bag checking function to ensure no empty bag in thefinished products;


7. Optional collecting belt , could set production amount, for easy collection;


8. PLC and touch screen control system, easy to view the working status and friendly for operation;


9. Selected electrical and pneumatic parts from domestic and international brands;


技術參數 / Technical parameters

技術參數  Standard Specification:

型號Model

YH-ZM

動作流程Working procedure

手工放棉、自動疊棉、自動裝袋、空袋檢測、自動壓袋、成品輸出

Put the dry facial mask sheet and bags by hands- auto facial mask sheet folding- auto facial mask bag picking up and opening – Auto empty bag checking—Auto bag pressing-- auto bagging output

生產效率Capacity

4000~4500PCS/h

面膜袋規格Facial Mask Bag Size

寬115-165mm 長150-220mm(三折);寬95-165mm 長150-220mm(四折)

W115-165mm L150-220mm (three times folding)   W95-165mm L150-220mm(four times folding)

電源、功率Power

電源:220V/1Ph/50Hz、功率:1.2KW

Power:220V/1Ph/50Hz; 1.2KW

氣源、耗氣量Air Pressure and Consumption

0.6Mpa、250L/Min

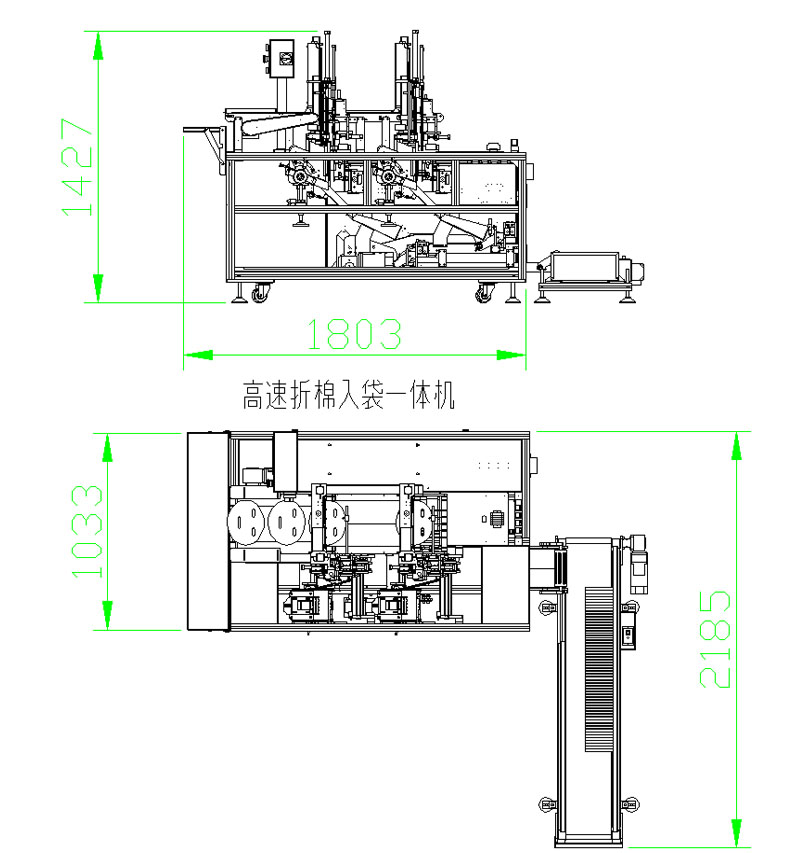

設備尺寸Machine Dimension

L1725*W1050*H1380


產品細節 / Product details

產品視頻 / Product video
